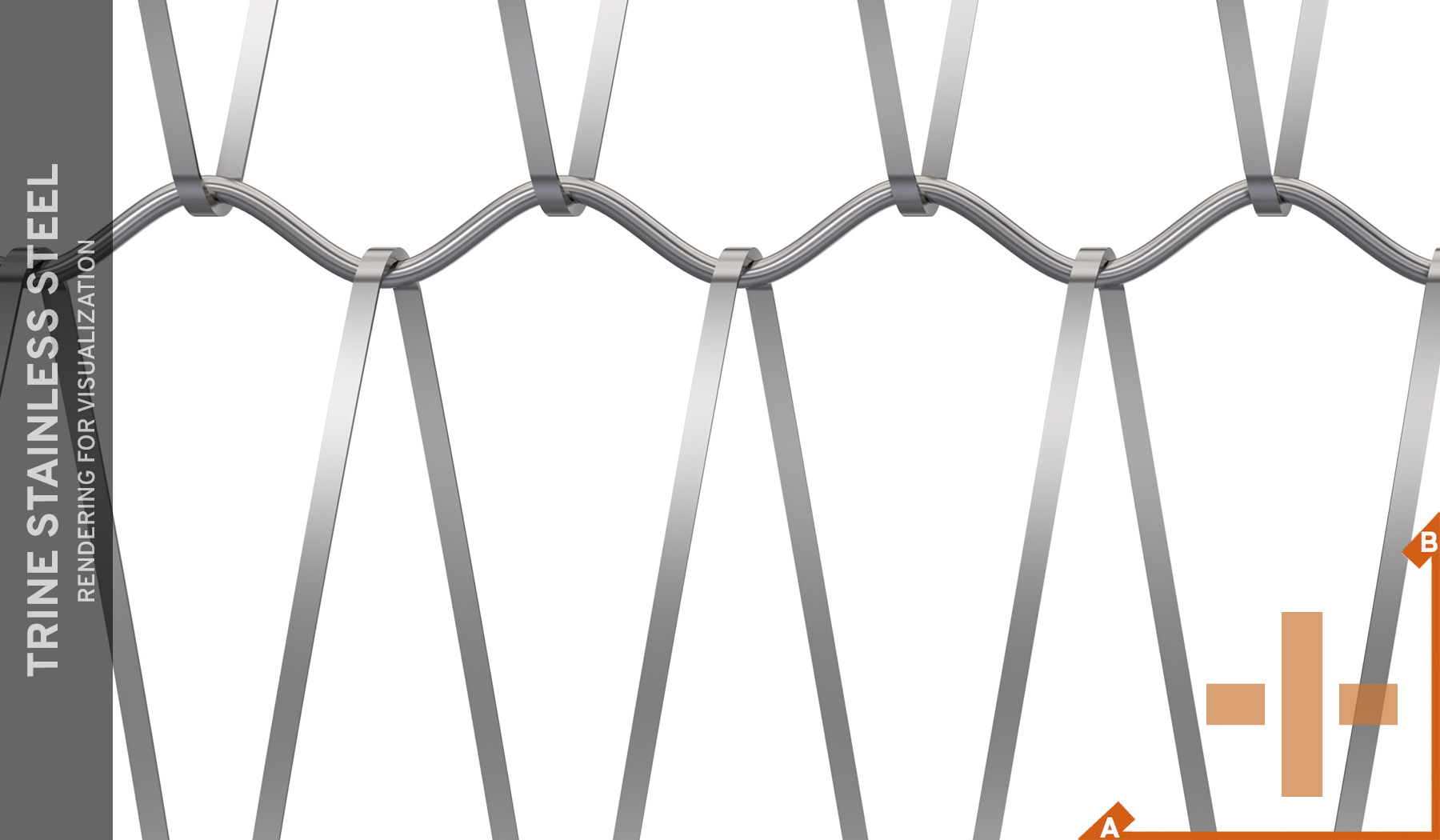

Trine
Pattern Details
Percent Open:83.0%
Aspect Ratio:2.50:1
Weight:0.05 lbs./sq. ft.
Overall Thickness:0.875
Crimp Style:BTPLZ
Opening Limitation:0.985 in.
What are your dimensions?
We manufacture every job to size. List the dimensions and any addition details of your job.
Please double check that your sizes and materials are within our Maximum Dimensions below.
"Maximum" Dimensions of available raw material configurations
Max. A
Max. B
Raw Material Configuration
1200
314
Notes
*Weight based on the specific density of mild (plain) steel **Maximum sphere diameter which will pass through opening Product specifications are subject to change. Product image is shown at 100% unless stated otherwise. For accuracy, specification sheet must be printed with no scaling. Measurements and data are approximate and should be confirmed with a physical sample.
Trine
Materials & Finishes
Raw Materials
Secondary Finishes
Trine

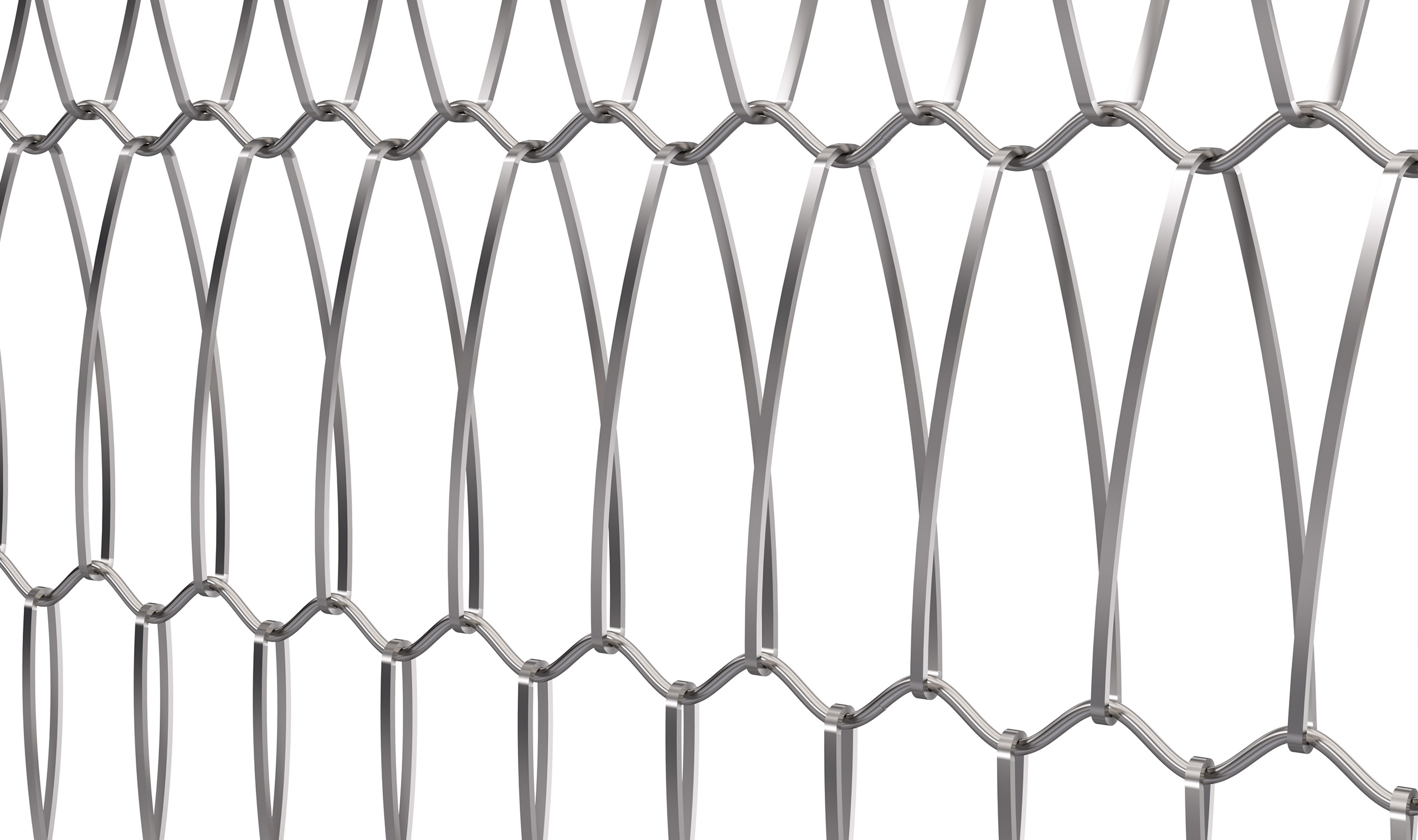

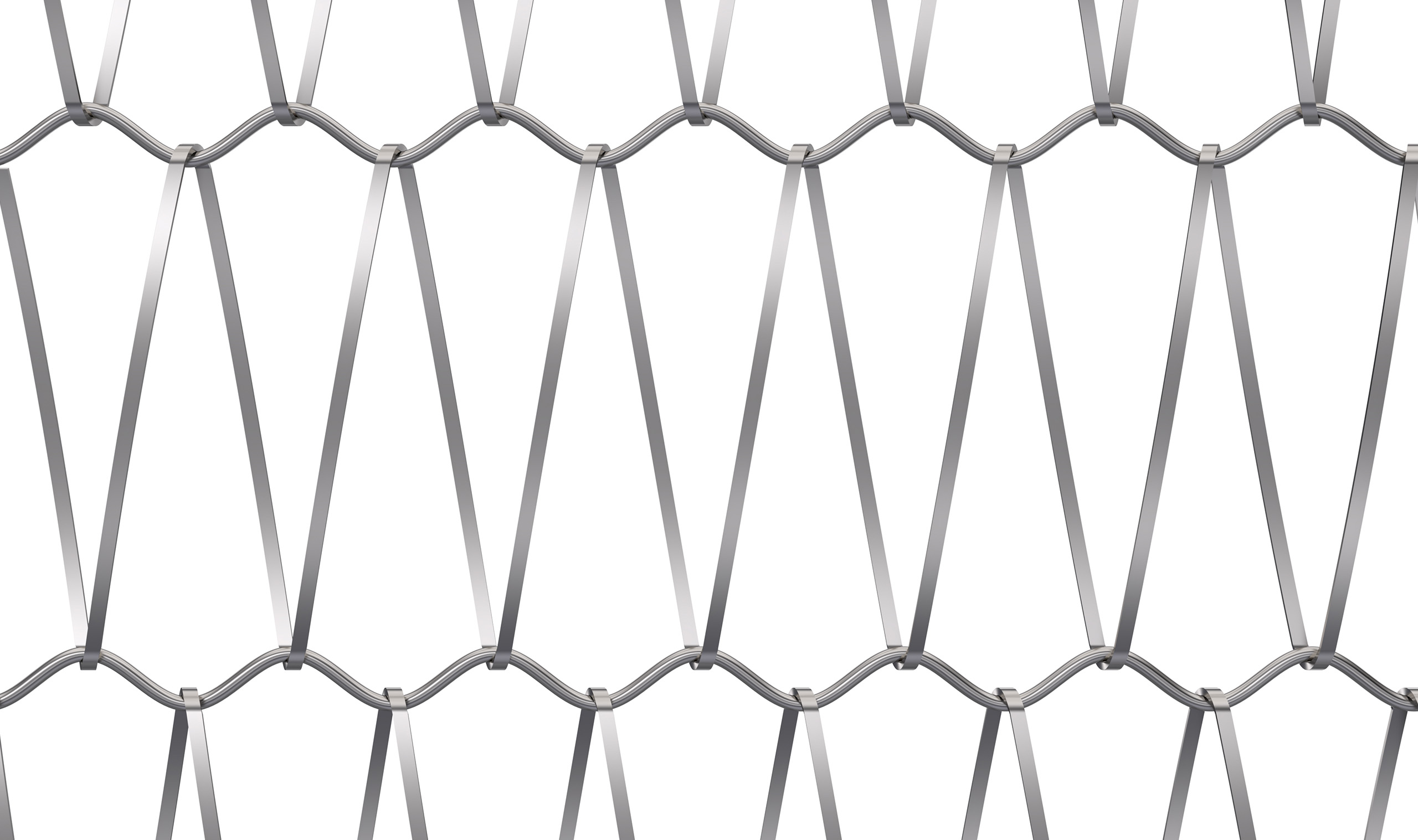

Trine is a flexible mesh pattern that uses a substantial flat spiral shape to create the links. Tensioning the Trine wire mesh pattern for use as a façade, a room divider, and even a railing infill panel is an effective, cost saving strategy. This is a lighter version of the Dune 40100 that is available in T316 stainless steel, Copper based alloys, or aluminum. Powder coating options also makes this popular mesh pattern relevant to any project aesthetic. Multiple flexible mesh mounting systems are available to help bring your vision to life. Or, contact us and we can discuss the options that are right for your project.Product Details
Percent Open: 83.0%Opening Limitation: 0.985Overall Thickness: 0.875Weight: 0.05 lbs./sq. ft.Crimp Style: BTPLZAspect Ratio: 2.50:1
Available Raw Materials
Stainless SteelBrassCopperAvailable Secondary Finishes
Anodized
Product Details
Percent Open: 83.0%Opening Limitation: 0.985Overall Thickness: 0.875Weight: 0.05 lbs./sq. ft.Crimp Style: BTPLZAspect Ratio: 2.50:1
Available Raw Materials
Stainless SteelBrassCopperAvailable Secondary Finishes
Anodized
