M31Z-3
Mid-Fill Woven Wire Mesh Pattern
The Banker Wire M31Z-3 is a woven wire mesh specification. This Mid-Fill rectangular weave can be woven in a variety of alloys including: Plain Steel, Stainless Steel, Brass, Bronze, Stainless/Bronze, Stainless/Brass.
Pattern Details
Percent Open:44.0%
Overall Thickness:0.250
Crimp Style: 3FPLZ
Aspect Ratio: 1.20:1
Opening Limitation: 0.380
Weight: 2.48 lbs./sq. ft.
Available Secondary Finishes:
Stainless Steel
Important Note Regarding Color
Please note that due to the limitations and relative inconsistencies of digital displays, the original and artificially colorized photography above is intended to only be a representation of the raw materials Banker Wire uses and is not a substitution for physical samples. Banker Wire manufactures all wire mesh in a bare mill finished condition. Please always confirm size, color, and finishes of wire mesh patterns with physical samples.

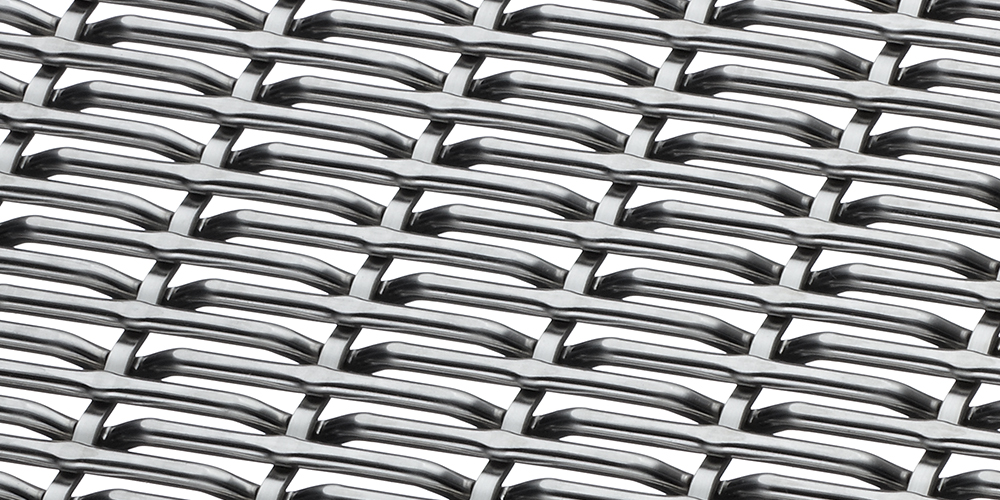

Products Similar to M31Z-3
Additional Images
M31Z-3
Pattern Details
Percent Open:44.0%
Aspect Ratio:1.20:1
Weight:2.48 lbs./sq. ft.
Overall Thickness:0.250
Crimp Style:3FPLZ
Opening Limitation:0.380 in.
What are your dimensions?
We manufacture every job to size. List the dimensions and any addition details of your job.
Please double check that your sizes and materials are within our Maximum Dimensions below.
"Maximum" Dimensions of available raw material configurations
*Weight based on the specific density of mild (plain) steel **Maximum sphere diameter which will pass through opening Product specifications are subject to change. Product image is shown at 100% unless stated otherwise. For accuracy, specification sheet must be printed with no scaling. Measurements and data are approximate and should be confirmed with a physical sample.
