WD-043
Welded Wire Mesh Pattern

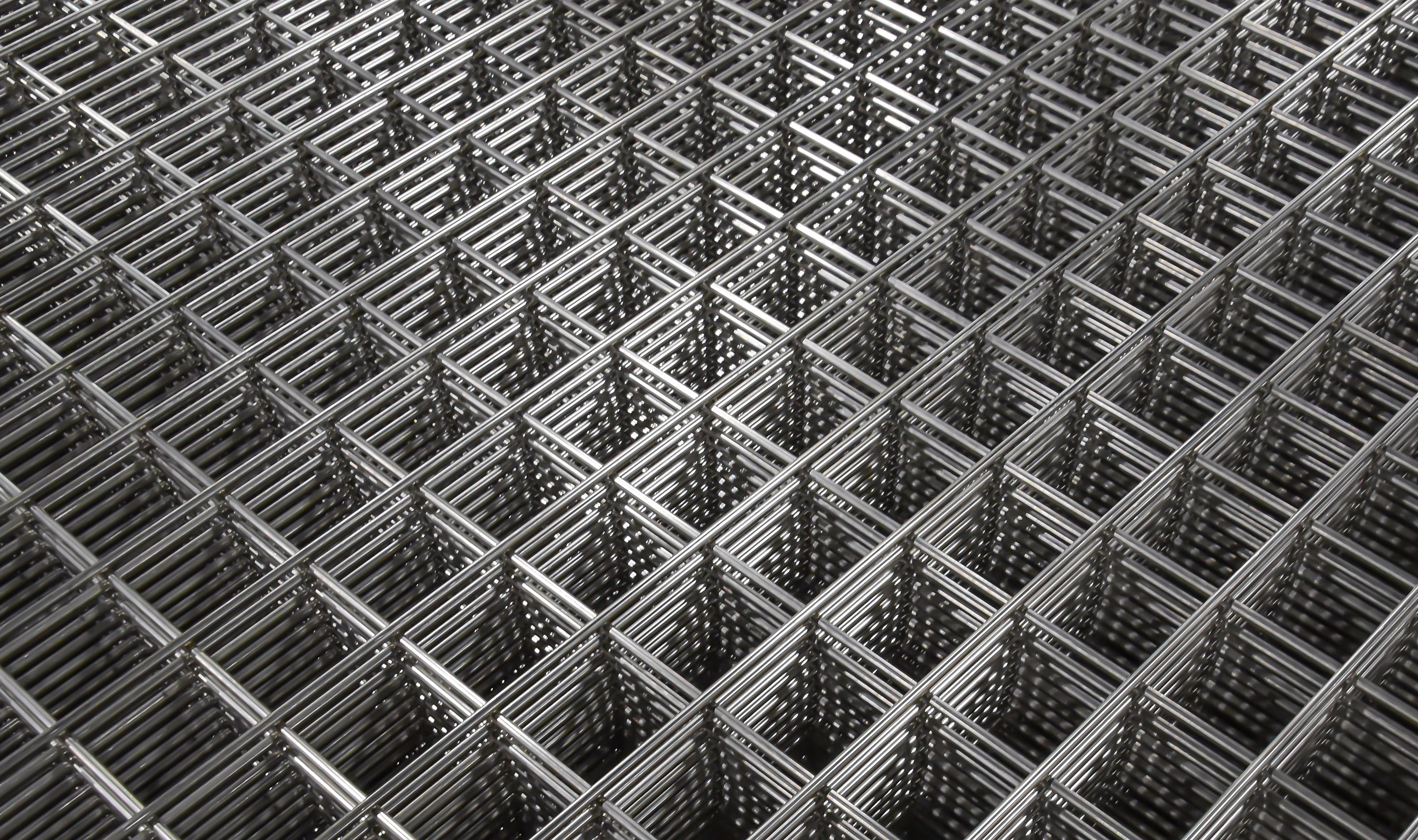

The Banker Wire WD-043 is a 2" OPG .187 WELDED wire mesh specification. This square mesh can be welded in a variety of alloys including: Stainless Steel, Plain Steel, Weathering Steel, Pre-Galvanized Steel, Galfan.
Pattern Details
Percent Open:83.6%
Overall Thickness:0.374
Crimp Style: WDWD
Aspect Ratio: 1.00:1
Opening Limitation: 1.810
Weight: 1.02 lbs./sq. ft.
Additional Images
WD-043
Pattern Details
Percent Open:83.6%
Aspect Ratio:1.00:1
Weight:1.02 lbs./sq. ft.
Overall Thickness:0.374
Crimp Style:WDWD
Opening Limitation:1.810 in.
What are your dimensions?
We manufacture every job to size. List the dimensions and any addition details of your job.
Please double check that your sizes and materials are within our Maximum Dimensions below.
"Maximum" Dimensions of available raw material configurations
*Weight based on the specific density of mild (plain) steel **Maximum sphere diameter which will pass through opening Product specifications are subject to change. Product image is shown at 100% unless stated otherwise. For accuracy, specification sheet must be printed with no scaling. Measurements and data are approximate and should be confirmed with a physical sample.
