P-147

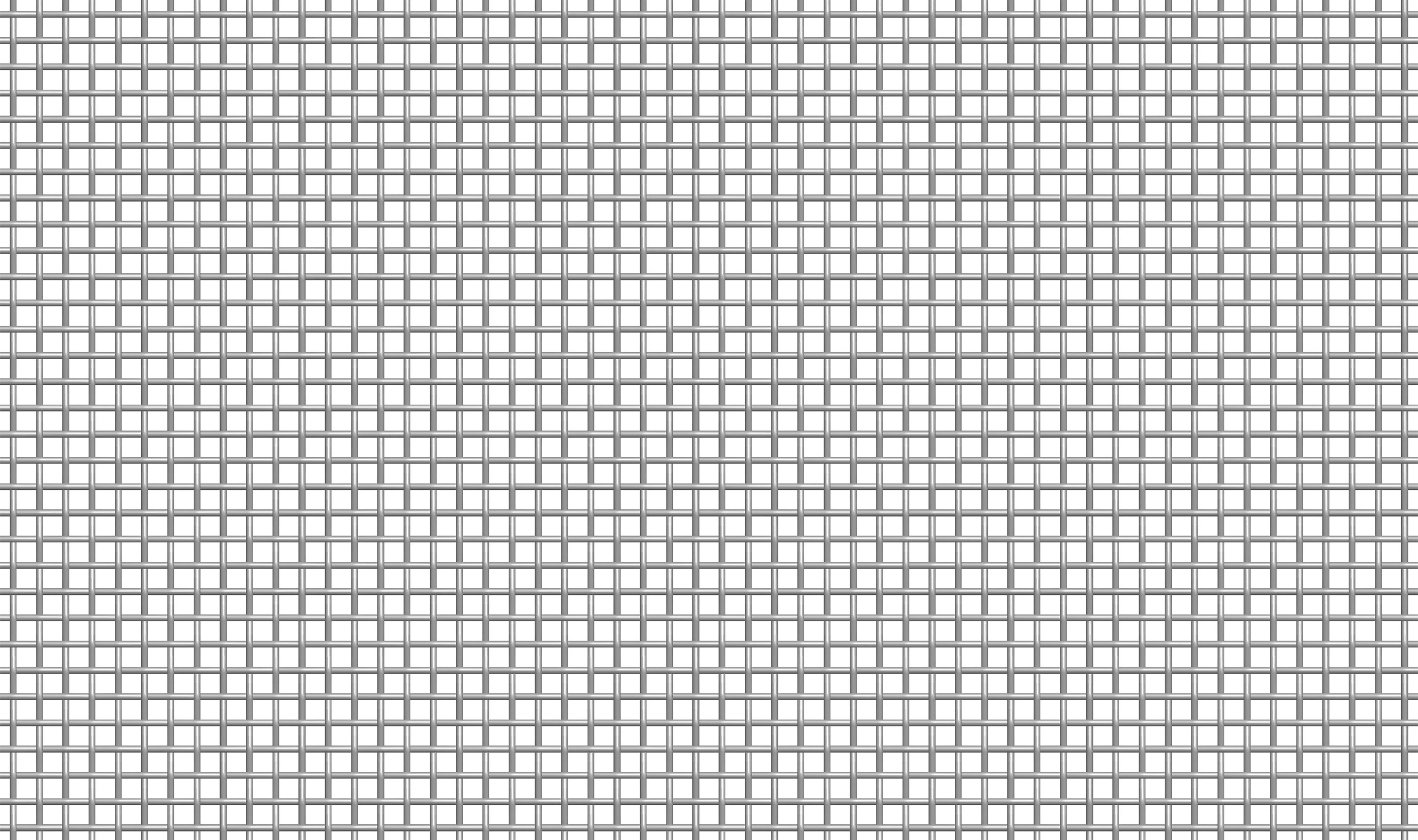

Woven Wire Mesh Pattern
The Banker Wire P-147 is a 4-1/2 MESH .054 woven wire mesh specification. This square weave can be woven in a variety of alloys including: Stainless Steel.
Pattern Details
Percent Open:57.3%
Overall Thickness:0.108
Crimp Style: PLPL
Aspect Ratio: 1.00:1
Opening Limitation: 0.168
Weight: 0.86 lbs./sq. ft.
P-147
Pattern Details
Percent Open:57.3%
Aspect Ratio:1.00:1
Weight:0.86 lbs./sq. ft.
Overall Thickness:0.108
Crimp Style:PLPL
Opening Limitation:0.168 in.
What are your dimensions?
We manufacture every job to size. List the dimensions and any addition details of your job.
Please double check that your sizes and materials are within our Maximum Dimensions below.
"Maximum" Dimensions of available raw material configurations
*Weight based on the specific density of mild (plain) steel **Maximum sphere diameter which will pass through opening Product specifications are subject to change. Product image is shown at 100% unless stated otherwise. For accuracy, specification sheet must be printed with no scaling. Measurements and data are approximate and should be confirmed with a physical sample.
