M22-104
Large Woven Wire Mesh Pattern
Pattern Details
Percent Open:78.3%
Overall Thickness:0.144
Crimp Style: 2L2L
Aspect Ratio: 1.00:1
Opening Limitation: 0.928
Weight: 0.56 lbs./sq. ft.
Available Secondary Finishes:
Stainless Steel
Important Note Regarding Color
Please note that due to the limitations and relative inconsistencies of digital displays, the original and artificially colorized photography above is intended to only be a representation of the raw materials Banker Wire uses and is not a substitution for physical samples. Banker Wire manufactures all wire mesh in a bare mill finished condition. Please always confirm size, color, and finishes of wire mesh patterns with physical samples.

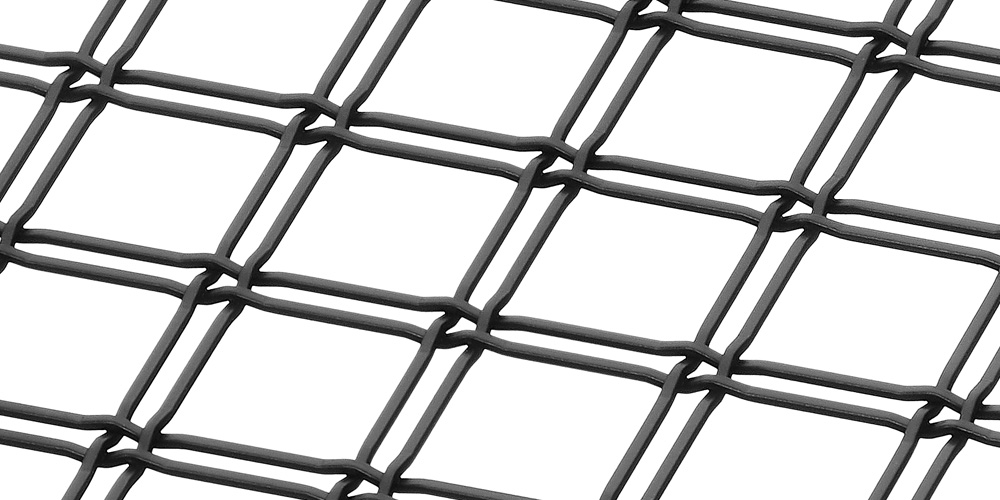

Products Similar to M22-104
Additional Images
M22-104
Pattern Details
Percent Open:78.3%
Aspect Ratio:1.00:1
Weight:0.56 lbs./sq. ft.
Overall Thickness:0.144
Crimp Style:2L2L
Opening Limitation:0.928 in.
What are your dimensions?
We manufacture every job to size. List the dimensions and any addition details of your job.
Please double check that your sizes and materials are within our Maximum Dimensions below.
"Maximum" Dimensions of available raw material configurations
*Weight based on the specific density of mild (plain) steel **Maximum sphere diameter which will pass through opening Product specifications are subject to change. Product image is shown at 100% unless stated otherwise. For accuracy, specification sheet must be printed with no scaling. Measurements and data are approximate and should be confirmed with a physical sample.
